Sanitary Ball Valves - High Purity True Bore Ball Valve

ASME BPE / FDA / USP / 3A Compliant Sanitary Ball Valves

Two Ways | Multi-Ways

ISO 5211 Direct Mounted Ball Valves

Modentic Sanitary Ball valves are engineered for the pure process. It is suited for the pharmaceutical, biotechnology, semiconductor and food industries.

The ASME BPE compliant and true bore design ensure cleanability on the product line.

Options: Stainless steel with Low ferrite (<1%), anti-corrosive material (Hastelloy), electro-polished surface treatment, purge and drain ports are available upon request.

True Bore Sanitary Ball Valves - Two Way

High Purity Ball Valves

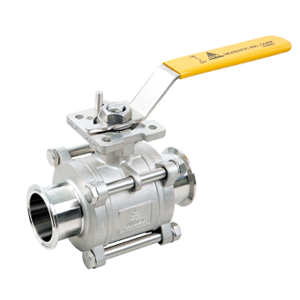

MD-928TC / EB

3PC TUBE BORE HIGH PURITY BALL VALVE

SIZE & PRESSURE

  • 1000PSI (PN63) for 1/2" ~ 2" (DN15 ~ DN50)
  • 720PSI (PN40) for 2-1/2" ~ 4" (DN65 ~ DN100)

FEATURE

  1. Investment Casting Construction
  2. ISO 5211 DirectMounting Flange
  3. Blow-Out-Proof Stem Design
  4. Anti-Static Device
  5. CF3M/SS316L Sulphur between 0.005% ~ 0.017%
  6. CF3M/SS316L Ferrite Content less than 3%
  7. Handle With Locking Device

END CONNECTION :

  • Tri-Clamp
  • Tube Ends: ASME BPE/ISO 1127/DIN 11850

Material :

  • CF3M / SS316L / Hastelloy C276
literature

MD928TC MD928EB

V-255TC/EB

V-255TC / EB

3PC TUBE BORE HIGH PURITY BALL VALVE
PRESSURE
  • EN1092-1 PN63 (1000PSI)
FEATURE
  1. Investment Casting Construction
  2. ISO 5211 Mounting Flange ( Non-Direct )
  3. Blow-Out-Proof Stem Design
  4. Anti-Static Device
  5. CF3M/SS316L Sulphur between 0.005% ~ 0.017%
  6. CF3M/SS316L Ferrite Content less than 3%
  7. Handle With Locking Device
END CONNECTION :
  • Tri-Clamp / Tube Ends
Material :
  • CF3M / SS316L / Hastelloy C276
SIZE
  • Tube Bore 1/2" ~ 2" (DN15 ~ DN50)
literature

V255TC V255EB

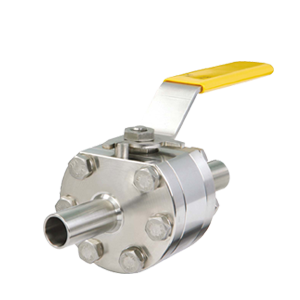

MD-938TC/EB

MD-938TC/EB

3PC TUBE BORE HIGH PURITY BALL VALVE
PRESSURE
  • 1000PSI (PN63)
FEATURE
  1. Made by Forged Bar Material
  2. Blow-Out-Proof Stem Design
  3. Anti-Static Device
  4. SS316L Sulphur between 0.005% ~ 0.017%
  5. SS316L Ferrite Content less than 3%
  6. Regular Handle
END CONNECTION :
  • Tri-Clamp / Tube Ends
Material :
  • SS316L / Hastelloy C276
SIZE
  • Tube Bore 1/2" ~ 2" (DN15 ~ DN50)

DESIGN :

  • ANSI B16.34
  • BPE-2005

CERTIFICATE :

  • FDA Regulatory Status
  • USP TEST
  • ISO 9001
  • PED EU/2014/68 Module H
  • CRN

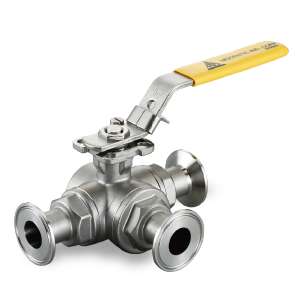

Sanitary 3 Way Ball Valves / Sanitary 4 Way Ball Valves

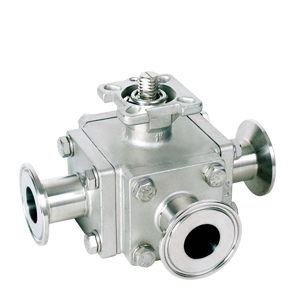

K-Z04TC/EB

K-Z04TC / EB

3 WAY / 4 WAY SANITARY BALL VALVE
PRESSURE
  • 1000PSI (PN63)
FEATURE
  1. Investment Casting Construction
  2. ISO 5211 Direct Mounting Flange
  3. T-Port or L-Port
  4. Blow-Out-Proof Stem Design
  5. Anti-Static Device (Option)
  6. Design acorrding to 3A
  7. Handle With Locking Device (Option)
END CONNECTION :
  • TTri-Clamp / Tube Ends
Material :
  • Stainless Steel
SIZE
  • Tube Bore 1/2" ~ 2 " (DN15 ~ DN50)
literature

DESIGN :

  • ANSI B16.34
  • BPE-2005

CERTIFICATE :

  • FDA Regulatory Status
  • USP TEST
  • ISO 9001
  • PED EU/2014/68 Module H
  • CRN
