Reliable and affordable

Modentic safety relief valve is suitable for the relief of steam, air and natural gas. The valve is made of bronze or stainless steel.

Features and advantages

  • A variety of pipeline connections: Threaded safety valves and Flanged safety valves.
  • High Lift Type / Low-Lift Type / Full Bore Type
  • Lever Type / Sealing Type

Safety Valves - Companct Design And High Performace

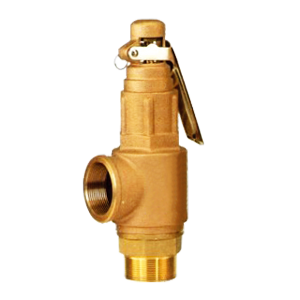

Brass Safety Valve

Brass/ Bronze High Lift Type

Load Type

  • Spring loaded safety valve

Size & Working Pressure

  • 1/2" to 2-1/2" (DN15 ~ DN65)
  • 0.2 ~ 40kg/cm²

FEATURE

  1. Investment Cast Body Construction
  2. Availability : Lever Type / Sealing Type

END CONNECTION :

  • Threaded / Flanged Ends

Sealing Type

  • Metal to Metal
  • Disc Insert VITON
  • Disc Insert PTFE

Material :

  • Brass / Bronze

Usable Fluids :

  • Water / Non-corrosive gas / Air and steam

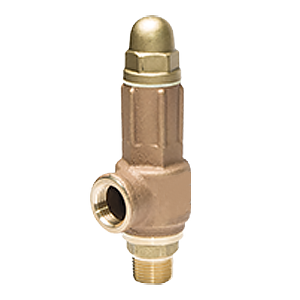

Bronze Safety Valve

Brass/ Bronze Low Lift Type

Load Type

  • Spring loaded safety valve

Size & Working Pressure

  • 1/2" to 2-1/2" (DN15 ~ DN65)
  • 0.2 ~ 25kg/cm²

FEATURE

  1. Investment Cast Body Construction
  2. Availability : Lever Type / Sealing Type

END CONNECTION :

  • Threaded / Flanged Ends

Sealing Type

  • Metal to Metal
  • Disc Insert VITON
  • Disc Insert PTFE

Material :

  • Brass / Bronze

Usable Fluids :

  • Water / Non-corrosive gas / Corrosive gas / Air and steam

CERTIFICATE :

  • ISO 9001
  • ISO 4126
  • EN 10204-3.1 MTR
