Cryogenic Ball Valves

Cryogenic Ball Valves

Modentic's Cryogenic Series Three Piece and Flanged ball valves are engineered for LNG storage, liquefied gas production, transportation, and storage.

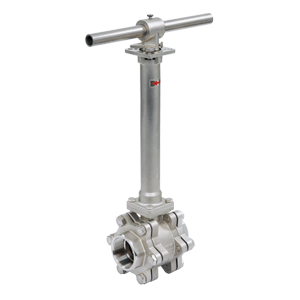

Cryogenic Ball Valve

LT-2000

PRESSURE & SIZE

  • 1/4" ~ 2" (DN8 ~ DN50) : 2000 PSI (PN140)
  • 2-1/2" ~ 4" (DN65 ~ DN100) : 1000 PSI (PN63)

FEATURE

  1. Investment Casting Construction
  2. ISO 5211 Direct Mounting Flange
  3. Extension Stem Design
  4. Blow-Out-Proof Stem Design
  5. Anti Static Device
  6. Lever Operation

END CONNECTION :

  • Threaded / Socket Weld / Butt Weld Ends

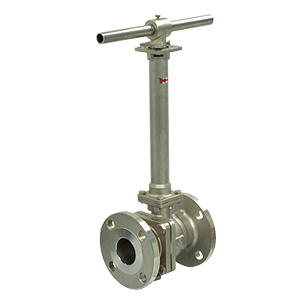

LTF-150

2PC CRYOGENIC FLANGED BALL VALVE

SIZE & PRESSURE

  • ANSI Class 150
  • Full Bore 1/2" ~ 4" (DN15 ~ DN100)

FEATURE

  1. Investment Casting Construction
  2. ISO 5211 Direct Mounting Flange
  3. Extension Stem Design
  4. Blow-Out-Proof Stem Design
  5. Anti Static Device
  6. Face to Face : ASME B16.10
  7. Flange Dimension : ASME B16.5
  8. Lever Operation

END CONNECTION :

  • Flanged Ends, RF

LTF-300

3PC CRYOGENIC FLANGED BALL VALVE

SIZE & PRESSURE

  • ANSI Class 300
  • Full Bore 1/2" ~ 4" (DN15 ~ DN100)

FEATURE

  1. Investment Casting Construction
  2. ISO 5211 Direct Mounting Flange
  3. Extension Stem Design
  4. Blow-Out-Proof Stem Design
  5. Anti Static Device
  6. Face to Face : ASME B16.10
  7. Flange Dimension : ASME B16.5
  8. Lever Operation

END CONNECTION :

  • Flanged Ends, RF

DESIGN :

  • ANSI B16.34
  • API 608 Design
  • NACE MR-0175 / ISO 15156
  • API 6D
  • ISO 14313
  • ISO 17292

CERTIFICATE & TEST:

  • BS 6364 Specification for valves for cryogenic service
  • PED EU/2014/68 Module H
  • ATEX 2014/34/EU
  • CRN
